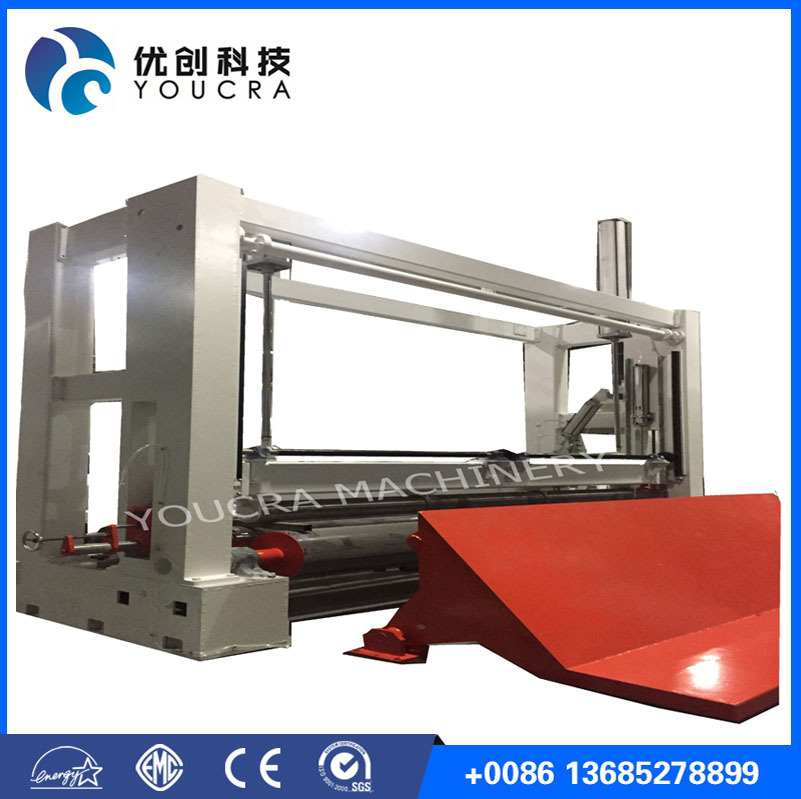

PP Spunbond nonwoven fabric making machine 2400S,3600S
Используется в домашнем текстиле, упаковке, декоративных материалах, сельскохозяйственных и промышленных гидроизоляционных материалах и ряде других фильтрующих изделий.
Категория:
Ключи:
PP Spunbond nonwoven fabric making machine 2400S,3600S
Описание
| Product Hightlights | |||
| Power(W) | Dimension(L*W*H) | Weight | |
| 500kw | 30000x20000x11000 | 70000-130000kg | |
| Specifications | |||
| Condition: | New | Automatic Grade: | Automatic |
| Place of Origin: | Jiangsu, China (Mainland) | Brand Name: | YOUCRA |
| Model Number: | ss | Voltage: | 380V |
| Certification: | CE Certificate, | Width: | 1.6m, 2.4m,3.2m |
| Technics: | Spunbond | Raw material: | PP chips |
| Melting index: | 28-40 g/10min. | Melting point: | 162 - 165 °C |
| Density: | 0.90-0.91 g/cm3 | Fabric weight range: | 10-180gsm |
| Max. winding dia.: | 1500mm | Monofilament fiber no.: | 1.8~2.0den |
| After-sales Service: | Engineers available to service machinery overseas | Warranty: | 1 Year |
| Supply Ability | |||
| Supply Ability | 20 Set/Sets per Year | ||
| Packaging & Delivery | |||
| Packaging Details | Packaging requirement: large parts wrapped in several turns of films, small parts boxed in wooden crate, each packaged is numbered and packed to easy load | ||
| Port | Shanghai | ||
Product Application
The product is with advantage of
A. short technological process ;
B. high production efficiency;
C. low pollution ;
D. energy & space save ;
E. high automated and easy to operate, material wastage consumption rate: max. 5%.
F. The whole process from charging materials to fabric output is controlled automatically. The AC frequency conversion technology (which is more energy-saving) and touch screen control have been adopted;
G. The technology possesses advantages of reasonable structure with space- saving style , high working performance, low production consumption, easy operation, less operating troubles, etc.
H.Controlled by PLC operated by touch screen .
Process flowing chart
raw material(edge material recycling)- melt extrusion- filter metering -spinning -cooling air drawing- form web -hotrolling- cutting and rolling cutting again -finished products
